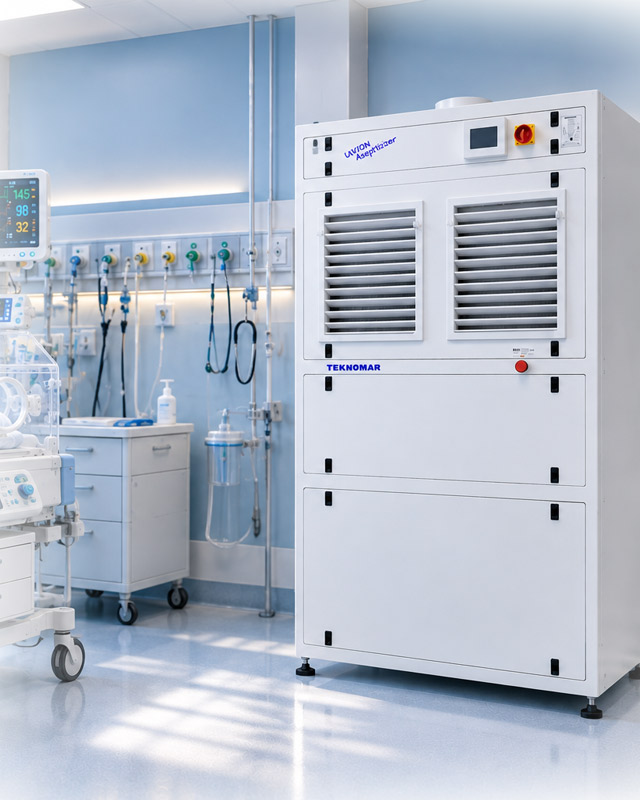

Aseptizer CW1350 PROTECTION

High-capacity protection for larger critical areas.

ASEPTIZER CW1350 combines a total air flow of 2,500 m³/h with H14 final filtration, UVC, UVION atmospheric plasma, positive pressure management, and 24,000 BTU/h air conditioning in a single system.

Turn a room into a controlled positive clinical environment.

Creates positive-pressure hygienic clinical environments. Thanks to its compact structure, it provides fast installation, low energy consumption, and high-performance safe air management.
High-capacity positive area protection! Filtration, fresh air, pressure, and air conditioning in a single unit.
2,500 m³/h

Total air flow

700 m³/h

Exhaust component

24,000 BTU/h

Air conditioning

Catalog

EN 1391 Kb

DataSheet

TR 239 Kb

Hygienic Ambient Air Decontamination and Positive Pressure Management Platform

Aseptizer
Operating principle

Controlled air superiority in positive-pressure areas.

In positive-pressure areas, filtered and conditioned air is supplied to the clean area in a controlled manner. A properly designed air balance ensures that when doors are opened, the air direction flows from the protected area toward the adjacent volume.

Positive-pressure protection

The result does not depend solely on device flow rate. Room airtightness, return air, fresh air balance, door traffic, and diffuser placement are all considered together.

  1. Outside and return air are drawn into the multi-stage treatment line.
  2. Air is passed through H14, UVC, and UVION layers.
  3. Conditioned air is distributed to the controlled area.
  4. Pressure and operating values are monitored by sensors, PLC, and HMI.
Isolation Layout
Aseptizer CW1350

CW1350 Series Technical Specifications

Aseptizer CW1350 For Protection
Air Flow Rate 2,500 m³/h
Effective Volume
(Class 10,000)
130 m³
Effective Volume
(Class 100,000)
170 m³
Theoretical ACH 8 – 20
Pressure Mode (Pa) Positive
Dimensions (cm) 139 × 56 × 225
Weight 217 kg
Final Filter H14
Air Conditioning Capacity 24,000 BTU/h
Fresh Air or Exhaust 700 m³/h
Sound Level 55 dB@1 m
Optional CW1350 can also be produced in FLEX mode.

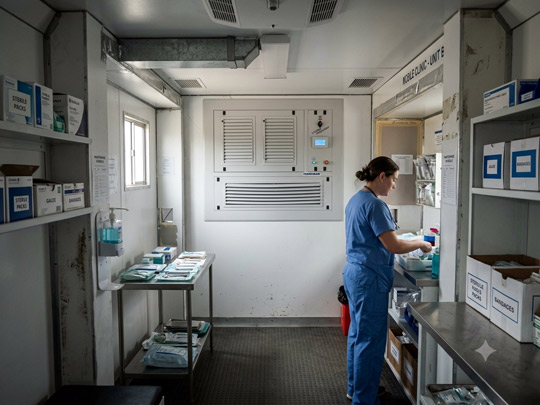

Aseptizer CW1350 is applied to Windows or Walls in Windows/Container Type Platforms, Field Hospitals, Container Clinics, or Very Narrow Spaces.
POSITIVE PRESSURE ASEPTIZER CW1350 INSTALLATION and LAYOUT
Aseptizer Installation Layout Diagram
Aseptizer

Application Examples

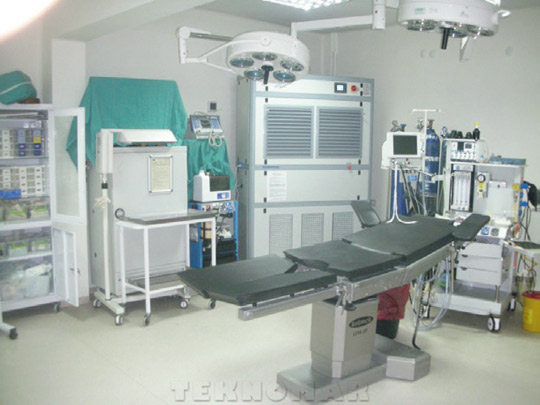

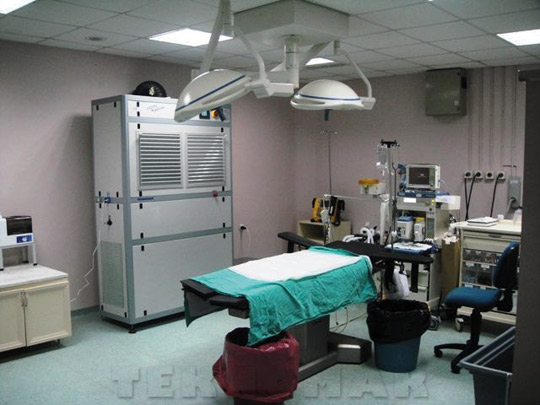

Operating Room
Operating Room

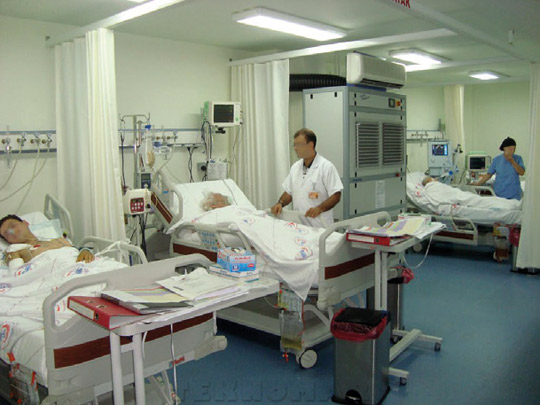

Recovery
Container Hospital

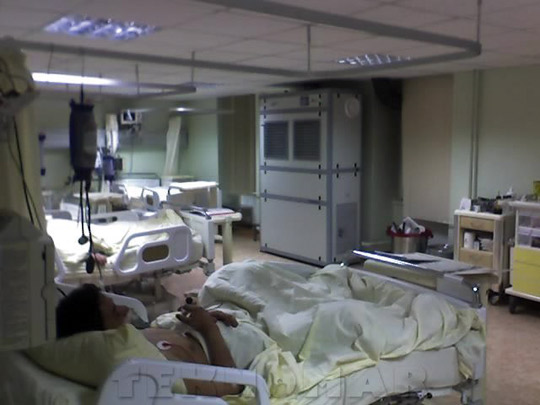

Intensive Care

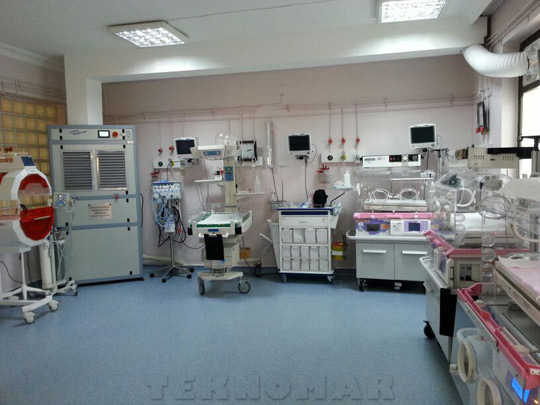

Neonatal

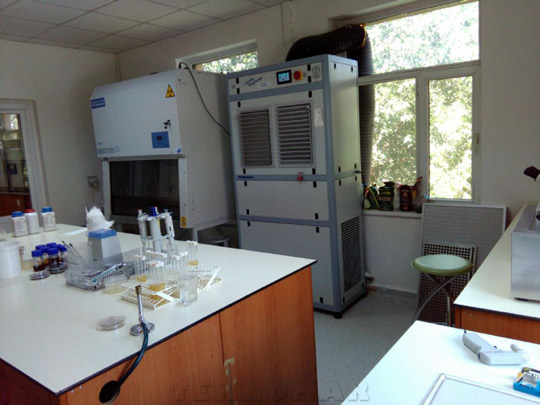

Laboratory

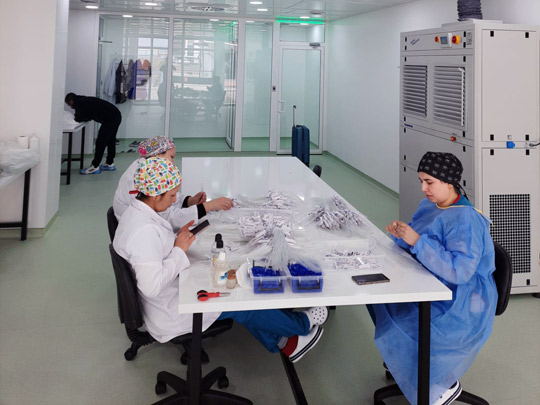

Clean Room
Frequently asked questions

What to know before the project. Frequently Asked Questions

CW1350 selection requires joint evaluation of the room, air distribution, and intended use scenario. Performance is not considered separately from installation conditions.

CW1350 is effective in volumes of 130 and 170 m³ depending on the Class status of the preferred environment. When performing Class calculation, the environment, target ACH, fresh air requirement, thermal load, door traffic, room airtightness, and process conditions are calculated together.

The H14 filter and high air flow rate are strong infrastructure components; room classification is verified by particle measurement and relevant field tests in the completed area. If ambient conditions are suitable, Class 10000 - Class 100000 Clean Room Standards are achieved.

CW1350 provides integrated air management at room level. In places without an HVAC system, CW1350 provides air conditioning locally.

CW 1350 is an electronic platform. It indicates its own filter clogging differentially 1 month in advance; as a manufacturer recommendation, filter replacement is recommended every 6 months. Details are available in the DataSheet.
